--The application of detection thickness: 0.05-10mm
(also can be based on user needs to provide detection of the 10mm above the instrument)
--High output voltage: 0.6kv-30kv (continuously adjustable)
--Output high pressure direct indicator
--DC power supply: 12V
--Power consumption: about 6W
--Host size: 220 x 130 x 88mm3
--Blue background light
--Instantaneous power, automatic power off
--3 bit LCD output voltage, full touch panel
--Alarm: headphones, buzzer alarm
Detection principle
Electric spark leak detector is based on a variety of conductive substrate surface on the coating with a certain
amount of pulse pressure, if because of the coating is too thin, metal or pinhole of leak leakage, when pulse
high voltage, air gap will be punctured and produce spark discharge, at the same time send a pulse signal to
alarm circuit, the alarm sound alarm, so as to achieve the aim of detecting the anticorrosive layer.

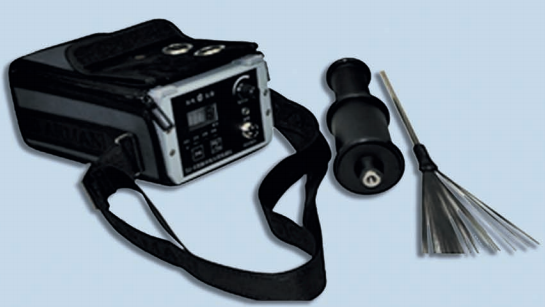

F0201 type electric spark leak detector to detect thickness: 0.05 to 10 mm, output voltage: 30 kv, 0.5 kv - is a
special instrument for testing metal anti-corrosion coating quality,
the use of this instrument can be of different thickness of glass coating,glass fiber reinforced plastic, epoxy
coal asphalt andrubber lining coating,such as for quality testing. When the coating have quality problems,
such as a pinhole, bubble, crack, crack, and instrument will be a bright spark, voice alarm at the same time.
Due to the use of the battery power supply, especially suitable for field operation, the equipment is advanced
design, stable and reliable, which can be widely used in chemical industry, oil, rubber, enamel, is an essential
tool used to detect metal anti-corrosion coating quality.
