Product introduction

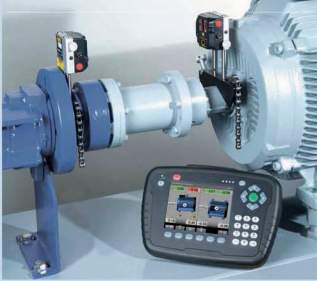

F0401 series products of basic starting point is to solve geometric measurement during the process of equipment installation and the axis of the problem. Our system operation simple, users only need according to the prompt on the screen to complete all of the operations. All system can be used in harsh environment,
and is easy to install.
Typical application areas
--Petrochemical, motor and pump (centrifugal pump, gear pump, screw pump, etc.), motor and the
compressor (centrifugal, reciprocating, screw, etc.), the flue gas turbine and generator, motor and
fan, blower, air supply, wind), turbine and compressor, turbine and fan, motor and gear box,
ethylene, propylene, cracking gas compressor of the curve.
--Metallurgy, motor and fan, motor and gear box, TRT and generators, gear box and rolling mill, motor
and the compressor (compressor, nitrogen pressure machine)
--Manufacturing: motor and fan, motor and gear box, gear box and the shaft
Wind: gear box and generator
Product advantages
--To deal with all kinds of mechanical, to replace the traditional "dial indicator" method. Accurate,
precision can reach 0.001 mm; When I get the results of the fast, can be adjusted in real time.
Improve the efficiency of 4 times at least.
--Also do geometric measurement, such as straightness, flatness, perpendicularity etc..
--Concentric measurement
--The steam turbine separator is looking for the right
--Test accuracy: 0.1, 0.01,0.001mm optional
Note:
--DE505 main components
--DE480/DE450/ simple laser shaft on the instrument main components
--Each set includes a software package, etc.

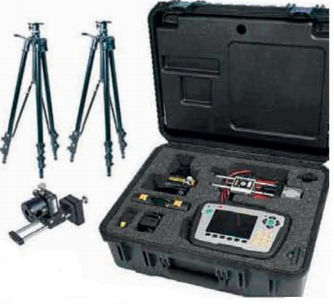

F0402 Laser Alignment Tool
Product performance
System
--Humidity: 10-95% weight: 6.3kg[13.9lbs]
--Size: H x W x D:500 x 415 x 170mm[19.7 x 6.7 x 16.3]]
Measurement unit M/S
--Detector type: TruePSD 20mm[0.78 "Class I Bluetooth" Bluetooth transmission: wireless technology
--Working hours: Approx.8h accuracy: 0.01mm[0.05mils]
--Error: digit 1%+1 effective measurement range: to m[10 3 feet] Up
--Laser type: laser Diode laser wavelength: 635-670nm
--Laser level: Safety class Max laser power: <1mW
--Tilt meter accuracy: 0.1. Resolution storage temperature: -20-60
--Protection class: class IP 65 working temperature: -10-50
--Material: aluminium/ABS plastics Anodized weight: oz] 176g[6.2
--Size: H x W x D:69.0 x 61.5 x 41.5mm[2.72 x 2.42 "x 1.63"]
Display unit
--Windows: colour screen backlit, LED VGA5.7
--Display accuracy: thou 0.01mm/0.05
--Built in lithium battery: duty Li Ion chargeable Heavy
--Approx.30hours (typical user cycle at)
--Working temperature: -10-50
--Interface: A Charge, USB
--Bluetooth I Bluetooth type: Class wireless technology
--Memory capacity: can be saved >2000measurements
--Auxiliary functions: Unit, converter Calculator
--Protection level: class IP 65
--Material: PC/ABS+TPE
--Size: H x W x D:250 x 175 x 63mm[9.8 x 6.9 "x 2.5"]
--Weight: 910g[2.0ibs]
--Cable length: 1m[39.4 Length
--Support: for chain width, 18mm[0.7 Type:V-fixture].
--Diameters:20-450mm[0.8 -17.7 "Shaft"
--Probe: aluminium Material:anodised
--Length:120mm, 60mm[4.72, 2.36
--(extendable) steel Material:Stainless
F0501 Laser Alignment Tool
Technical parameters
System
--Function: 3 kinds of measurement procedures: 40M
--Operating temperature: 0-50 relative humidity: 10-95%
--Maximum display error: 1%+1 resolution of the display value: 12Kg
--Instrument box size: H x D x 480 x 340 x 180 display unit
Host E418
--Materials: aluminum /ABS Engineering Plastics: multifunctional digital keyboard keyboard film
--Display type: color VGA, size: 5.7 inch battery: 4 R14 alkaline battery
--Working time: about 30hrs (normal operation) display accuracy: minimum 0.001mm
--Memory: 1000 sets of output interface: R232 interface
--Size: 192.5*192.5*45mm weight: 1.25Kg
Laser emitter D22
--Laser output power: <1mW laser wavelength: 635-670mm, red visible light
--Laser beam diameter: 6mm distance: R<40M (standard type)
--Power supply: 1*R14 level accuracy: 0.02mm/m
--Tuning range: 0.1mm/m working hours: 24hrs
--Shell material: aluminum alloy Weight: 2.65Kg
Laser receiver E5
--Type: dual axis PSD receiver Shell material: aluminum alloy
--Receiver reading range: 20mm*20mm Receiver reading accuracy: 0.001mm
--Linear degree: better than 1%+1 digits
--Electronic angle gauge accuracy: 0.1. Protection level: IP Class 66,67
--Size：60×60×42mm
--Weight：186g
Prism D46
Shell material: aluminum / steel Refraction accuracy：±0.01mm/m(2are sec.)
Rotational range：360。 Fine tune：0.1mm/m(20are sec.)
Sliding range：±2”(±50mm) Horizontal adjustment range：±3/16”(±5mm)
Vertical adjustment range：±3/16”(±5mm) Dip angle adjustment range：±2。
Laser entry perforation size：Ø3/4”(Ø20) Level gauge accuracy：0.3。（5mm/m）
Weight：180g
