B0801系列标准型千斤顶
--可360度全方位使用设计
--主轴及液压缸内壁硬铬处理耐磨、扛腐蚀；并能增加密封性及使用寿命
--强力弹簧加速主轴回缩速度
--特色软质环设计，防止主轴偏心荷载，避免磨耗刮伤油缸
--防尘环减少污染物附着
--上螺帽保证主轴超杨升
--表面涂抹材料美观抗腐蚀、防锈
--各型号均含SQB-3/8UF快速接头及防尘盖
 |
|||
 |
|||
|
型号 Model |
能力 Cylinder Capacity Ton(kN) |
扬程 Stroke (mm) |
受压面积 Effictigve (cm³) |
总油量 Oil Capacity (cm³) |

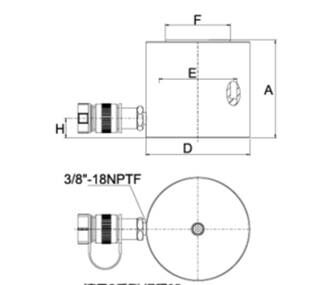

本体高 Collapsed Height A（mm） |
伸长高度Extended Height (mm) |
外径Outside Dia D(mm) |
内径Cylinder Bore Dia.E(mm) |
主轴直径 Plunger Dia. F(mm) |
底部内螺纹长度 Base to Adv.port H（mm） |
重量 Weight（kg） |
|
B0801 001 |
10 |
25.0 |
14.16 |
36.1 |
80.0 |
105.0 |
70.0 |
42.93 |
38.1 |
19.5 |
2.4 |
|
B0801 002 |
50.0 |
14.16 |
72.3 |
130.0 |
180.0 |
57.0 |
42.93 |
38.1 |
19.5 |
2.5 |
|
|
B0801 003 |
75.0 |
14.16 |
108.4 |
155.0 |
230.0 |
57.0 |
42.93 |
38.1 |
19.5 |
3.1 |
|
|
B0801 004 |
100.0 |
14.16 |
144.6 |
180.0 |
280.0 |
57.0 |
42.93 |
38.1 |
19.5 |
3.4 |
|
|
B0801 005 |
125.0 |
14.16 |
180.7 |
205.0 |
330.0 |
57.0 |
42.93 |
38.1 |
19.5 |
4.0 |
|
|
B0801 006 |
150.0 |
14.16 |
216.9 |
230.0 |
380.0 |
57.0 |
42.93 |
38.1 |
19.5 |
4.2 |
|
|
B0801 007 |
20 |
25.0 |
28.26 |
70.7 |
80.0 |
105.0 |
90.0 |
60.00 |
50.00 |
17.0 |
3.7 |
|
B0801 008 |
50.0 |
28.26 |
141.3 |
135.0 |
185.0 |
79.0 |
60.00 |
50.00 |
22.0 |
4.9 |
|
|
B0801 009 |
75.0 |
28.26 |
212.0 |
160.0 |
235.0 |
79.0 |
60.00 |
50.00 |
22.0 |
5.6 |
|
|
B0801 010 |
100.0 |
28.26 |
282.6 |
185.0 |
285.0 |
79.0 |
60.00 |
50.00 |
22.0 |
6.3 |
|
|
B0801 011 |
125.0 |
28.26 |
353.6 |
210.0 |
335.0 |
79.0 |
60.00 |
50.00 |
22.0 |
7.0 |
|
|
B0801 012 |
150.0 |
28.26 |
423.9 |
235.0 |
385.0 |
79.0 |
60.00 |
50.00 |
22.0 |
7.7 |
|
|
B0801 013 |
30 |
25.0 |
42.00 |
105.0 |
85.0 |
110.0 |
100.0 |
73.15 |
57.15 |
18.0 |
5.0 |
|
B0801 014 |
50.0 |
42.00 |
210.0 |
145.0 |
195.0 |
100.0 |
73.15 |
57.15 |
22.5 |
7.6 |
|
|
B0801 015 |
75.0 |
42.00 |
315.0 |
170.0 |
245.0 |
100.0 |
73.15 |
57.15 |
22.5 |
7.8 |
|
|
B0801 016 |
100.0 |
42.00 |
420.0 |
195.0 |
295.0 |
100.0 |
73.15 |
57.15 |
22.5 |
8.9 |
|
|
B0801 017 |
125.0 |
42.00 |
525.0 |
220.0 |
345.0 |
100.0 |
73.15 |
57.15 |
22.5 |
10.0 |
|
|
B0801 018 |
150.0 |
42.00 |
630.0 |
245.0 |
395.0 |
100.0 |
73.15 |
57.15 |
22.5 |
11.0 |
|
|
B0801 019 |
50 |
25.0 |
71.21 |
178.0 |
95.0 |
120.0 |
127.0 |
95.25 |
79.50 |
24.0 |
8.8 |
|
B0801 020 |
50.0 |
71.21 |
356.0 |
120.0 |
170.0 |
127.0 |
95.25 |
79.50 |
24.0 |
10.5 |
|
|
B0801 021 |
75.0 |
71.21 |
534.0 |
190.0 |
265.0 |
127.0 |
95.25 |
79.50 |
32.0 |
16.8 |
|
|
B0801 022 |
100.0 |
71.21 |
712.0 |
215.0 |
315.0 |
127.0 |
95.25 |
79.50 |
32.0 |
18.2 |
|
|
B0801 023 |
125.0 |
71.21 |
890.1 |
240.0 |
365.0 |
127.0 |
95.25 |
79.50 |
32.0 |
19.9 |
|
|
B0801 024 |
150.0 |
71.21 |
1068.1 |
265.0 |
415.0 |
127.0 |
95.25 |
79.50 |
32.0 |
21.4 |
|
|
B0801 025 |
100 |
25.0 |
133.27 |
333.1 |
100.0 |
125.0 |
177.0 |
130.30 |
104.90 |
20.0 |
16.9 |
|
B0801 026 |
50.0 |
133.27 |
666.3 |
160.0 |
210.0 |
177.0 |
130.30 |
104.90 |
30.0 |
26.8 |
|
|
B0801 027 |
100.0 |
133.27 |
1332.7 |
204.0 |
304.0 |
177.0 |
130.30 |
104.90 |
30.0 |
36.8 |
|
|
B0801 028 |
125.0 |
133.27 |
1665.8 |
235.0 |
360.0 |
177.0 |
130.30 |
104.90 |
30.0 |
40.6 |
|
|
B0801 029 |
150.0 |
133.27 |
1999.0 |
260.0 |
410.0 |
177.0 |
130.30 |
104.90 |
30.0 |
44.3 |
|
|
B0801 030 |
150 |
50.0 |
200.96 |
1004.8 |
200.0 |
250.0 |
215.0 |
160.00 |
115.00 |
50.0 |
50.2 |
|
B0801 031 |
100.0 |
200.96 |
2009.6 |
250.0 |
350.0 |
215.0 |
160.00 |
115.00 |
50.0 |
60.0 |
|
|
B0801 032 |
150.0 |
200.96 |
3014.4 |
300.0 |
450.0 |
215.0 |
160.00 |
115.00 |
50.0 |
68.9 |
|
|
B0801 033 |
200 |
50.0 |
283.38 |
1416.9 |
200.0 |
250.0 |
255.0 |
190.00 |
135.00 |
50.0 |
71.6 |
|
B0801 034 |
100.0 |
283.38 |
2833.0 |
250.0 |
350.0 |
255.0 |
190.00 |
135.00 |
50.0 |
85.0 |
|
|
B0801 035 |
150.0 |
283.38 |
4250.7 |
300.0 |
450.0 |
255.0 |
190.00 |
135.00 |
50.0 |
98.5 |
